DSL Busbar For EOT Crane

DSL Busbar For EOT Crane
DSL Busbar For EOT Crane
Send Inquiry
Product Code : 94
Price And Quantity
  • Minimum Order Quantity
  • 16 Meter
  • Price
  • 1600 INR
Product Specifications
  • Condition
  • New
  • Lifting Capacity
  • 100 Metric Ton
  • Max. Lifting Load
  • 100 Metric Ton
  • Max. Lifting Height
  • 25 Meter (m)
  • Power Source
  • Electric
  • Power Consumption
  • 200 Kilowatt (kW)
  • Voltage
  • 1100 Volt (v)
  • Warranty
  • 1 YEAR
  • Attributes
  • Easy To Operate, Rust Proof, Consume Less Power
Product Description

Bolted Joint DSL Bus Bar

Bolted joint Shrouded Bus bar(DSL) system are used for the electrification of mobile equipment. Shrouded Bus bar  is a safe, economical and low maintenance way to solve mobile electrification requirement. Systems can be designed to accommodate 60 to 400 amperes. Depending on the application there are various options and accessories that can be custom engineered for your conductor bar system. Portions of the system can be pre-assembled at the factory to help ease installation.

Technical Data Sheet    Galvanized Steel Bus bar    Copper Bus bar    Aluminum Bus bar
Ampere Capacity    60A    100A    125A    160A    250A    400A    200A    315A
Impedance mill ohm/M     3.45    2.76    1.82    0.32    0.28    0.20    0.30    0.28
DC Resistance Mill ohms/M    3.42    2.74    1.80    0.31    0.27    0.19    0.26    0.22
Standard Conductor Length    4.5 Mtrs    4.5 Mtrs    4.5 Mtrs

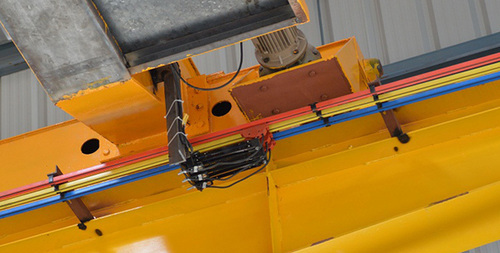

Conductor bar can be found on overhead crane runways, hoists, trolleys, conveyors, port cranes and people movers.

  •  Cover with ultra violet additive for outdoor sun locations.
  •  High temperature cover (280F) for all conductors.
  • Stainless steel conductors in  for corrosive atmospheres.
  • Epoxy coated, stainless steel, and insulated hangers for wet an corrosive atmospheres.
  •  Factory built expansion sections and anchors for expansion control.
  •  Factory bent curved conductor sections systems.
  •  A variety of covers for matching competitive systems.
  •  Heated conductor systems for ice prevention on outdoor systems or freezer storage.
  •  totally enclosed covers with flap for air-born contaminants, indoor & outdoor versions.
  •  Bare conductors available for extreme heat applications.
  • Special long-wear collector brushes for systems.


Product Specification
Product Name Bolted Joint DSL Bus Bar
Product Code 37
Place of Origin Rajkot, Gujarat, India
Advantages Low Maintenance, Easy Installation
Order Details
Packaging Details As Per Requirement
Delivery Time 10 to 15 Days
Port Mundra, Gujarat, India
Minimum Order Quantity 1 PSC
Supply Ability Any
Payment terms 100% advance
Trade Information
  • FOB Port
  • Payment Terms
  • Cash on Delivery (COD), Cheque, Others
  • Supply Ability
  • 500 Meter Per Month
  • Delivery Time
  • 4 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Free samples available with shipping and taxes paid by the buyer
  • Packaging Details
  • Main Export Market(s)
  • Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
