Enclosed Conductor System

Enclosed Conductor System

Product Details:

  • Thickness 3 Millimeter (mm)
  • Rated Operation Voltage 600
  • Protection Level IP65
  • Base Material PVC
  • Rated Current 600 Ampere (amp)
  • Cover Material PVC
  • Product Type Electric Enclosure
  • Supply Ability : 500 Meter Per Month
  • Click to view more
X

Price And Quantity

  • 1500 INR
  • 16 Meter

Product Specifications

  • 100 Ampere (amp)
  • 4000 X 85 X 56 Millimeter (mm)
  • PVC
  • IP65
  • CE
  • Electric Enclosure
  • PVC
  • PVC
  • 50 Hertz (HZ)
  • 3 Millimeter (mm)
  • 1 YEAR
  • 600 Ampere (amp)
  • Yellow
  • 600
  • 500 Volt (V)

Trade Information

  • mundra , india
  • Cash on Delivery (COD), Cheque
  • 500 Meter Per Month
  • 2-3 Week
  • Yes
  • Sample costs shipping and taxes has to be paid by the buyer
  • PACKING IN WOODEN BOX
  • North America, Middle East, Africa
  • All India
  • AN ISO 9001 : 2008 CERTIFIED COMPANY

Product Description

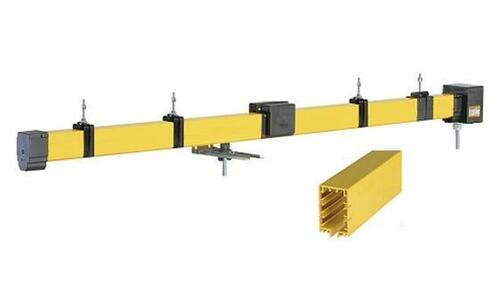

Enclosed Conductor System

The Box type enclosed ,joint less conductor  rails are modern & safe system for energy transmission for various type of equipments such as eot cranes, mobile machinery, bridge cranes, conveyor belts, chain conveyors etc

  • Rail Length [mm]: 4.000
  • Outside-Dimensions of bar profile: 2.20" x 3.54" (56.0 mm x 90,0 mm)
  • Support Spacing: 6.56 ft (2 meters)
  • Operating Conditions: For indoor and outdoor applications
  • Track Configuration: Straight course; curve segments available by request

Current Range:  40 Amps, 60 Amps, 80 Amps,100 Amps,120 Amps, 140 amps,160 Amps,180 Amps,200 Amps



Maximum Running Speed: 278.9 feet/minute (85 meters/minute)
Electrical properties:

  • Max. Voltage(V): 600
  • Rail Length [mm]: 4.000
  • Conductor cross section(mm2): 10 - 16 - 25 - 35 - 50
  • Resistance(Ω /km): 1.656 - 1.137- 0.713 - 0.522 - 0.337
  • Leakage resistance: CTI600-2, 7
  • Dielectric strength: 30-40KV/mm
  • Track Configuration: Straight course / Curve segments on request ( R≥ 1.2m )


Mechanical properties:

  • Flexible strength: 75N/mm2± 10%
  • Tensile strength: 40N/mm2± 10%


Temperature range:

  • Common Housing: -30oC up to +60oC
  • BAYBLEND Housing: -20oC up to +115oC

Product Specification
Product Name Enclosed Conductor System
Product Code 57
Place of Origin Rajkot, Gujarat, India
Advantages Low Maintenance, Easy Installation
Application
Order Details
Packaging Details As Per Requirement
Delivery Time 10 to 15 Days
Port Mundra, Gujarat, India
Minimum Order Quantity 1 PSC
Supply Ability Any
Payment tearms 50% advance
